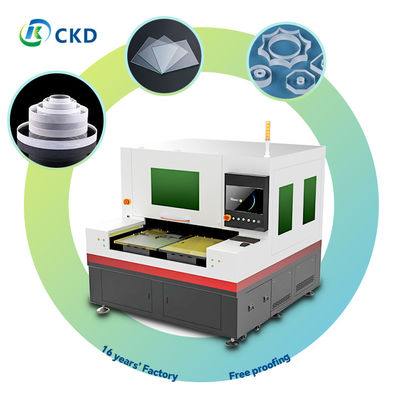

19mm Glass Laser Cutting Machine 150W Splitting Laser Source for Blue Glass Double Cut

Product Description:

Our cutting-edge, high-frequency pulsed laser offers superior cutting performance.

Our machine is capable of handling a wide range of materials, including metals and non-metals.

• Continuos sheet cutting
• Precision single-point cutting
• Efficient strip cutting

We use high-precision DC servo motors and ultra-fine 0.1μm optical encoders for unparalleled accuracy.

Our laser cutting machine features automatic focus-following functionality and dynamic piercing control.

Our machine incorporates a premium CCD camera system for real-time visual monitoring, pattern recognition, and mark point detection.

Our machine is equipped with a German-made, high-stability power source. We use a Taiwanese brand power supply for the optical components.

Our laser cutting machine can process materials up to 19mm in thickness, catering to a wide array of industrial applications.

• The motor base and optical platform are constructed with natural granite.
• Designed for superior stability and vibration resistance.
• Ensures maintained accuracy over time.

Our laser cutting machine is perfect for high-precision industrial applications.

Our machine is designed with a user-friendly interface for easy operation.

Precise cutting ensures minimal material waste, making our machine an eco-friendly option.

Our machine can cater to both small-scale and large-volume production runs.

Our machine has low maintenance requirements, ensuring long-term reliability.

Features:

Technical Parameters:

The following technical parameters describe our advanced laser cutting systems, which come in three different models: dual-platform ultrashort pulse laser cutting machine, dual-platform picosecond laser cutting machine, and single-platform picosecond laser cutting machine. Below is a table with the model numbers for each of these options.

Our laser cutting systems are equipped with ultrashort pulse fiber lasers, with specific types varying depending on the model. The lasers have an average power of 50W, although options for 10W, 20W, 30W, 60W, and 80W are also available. The wavelength is 1064nm, with a second harmonic at 532nm, and the pulse width is less than 10ps (picoseconds). The repetition rate is adjustable from 1Hz to 1000kHz, and the beam quality is M² < 1.2, which produces a near-diffraction-limited beam.

Our laser cutting systems offer high precision, with a positioning accuracy of ±2μm over the entire work area and repeatability of ±1.5μm, with ±16 arc-seconds angular accuracy. The maximum cutting speed is up to 1000mm/s, and the cutting thickness varies depending on the material properties and cutting requirements. For ultra-thin glass, the cutting thickness is ≤1mm, while for standard glass, the thickness is ≤19mm. The minimum line width is ≤30μm (material dependent), and the minimum hole diameter is ≤20μm.

Our dual-platform models come in three different work area dimensions per platform: 600x700mm, 600x900mm, or 400x500mm. The single-platform model also comes in three different work area dimensions: 400x500mm, 600x700mm, or 600x900mm.

Our laser cutting systems consume 150W of power (250W/350W standby) and require an input voltage of AC220V ± 10% with a frequency ranging from 50-60Hz.

Our laser cutting systems vary in size and weight depending on the model. The length ranges from 1600mm to 2550mm, the width ranges from 1700mm to 2080mm, and the height is always 1960mm. The weight varies from 3500kg to 5000kg.

Our laser cutting systems come equipped with a built-in water cooling system for thermal stability, as well as an advanced CNC control system with high-speed processing capabilities. Additionally, we provide proprietary cutting optimization software and Class 1 laser safety enclosure with emergency stop buttons for safety measures.

Our laser cutting systems operate best at an operating temperature range of 18-28°C (64-82°F) and humidity within 40-70% non-condensing. The power stability should remain at ±5% maximum fluctuation.

We offer optional upgrades to our laser cutting systems, including an enhanced vision system for automatic alignment, an automated material loading/unloading system, custom fixture designs for specific applications, and extended warranty and service packages. Please consult with our technical team for more information on customization.

Applications:

Our advanced laser cutting machine is designed to meet a wide range of industrial needs, offering precision and efficiency across various materials and applications:

• Ideal for creating high-precision instrument panels, dashboards, and control interfaces
• Capable of handling thin to medium-thickness materials with exceptional accuracy

Our laser cutting machine offers precision cutting for various types of glass, including:

• Ultra-thin Glass: Precise cutting of delicate glass sheets for electronic devices
• White Glass: Clean and accurate processing for decorative and architectural applications
• High-Borosilicate Glass: Specialized cutting for laboratory equipment and heat-resistant products
• Quartz Glass: Precision cutting for optical components and semiconductor industry needs

• Tailored for cutting PCB boards, flexible circuits, and other electronic substrates
• Ensures clean edges and minimal thermal impact on sensitive electronic materials

Our laser cutting machine offers precise cutting and shaping of various gemstones and precious materials, including:

• Sapphire Cutting: For watch faces, smartphone camera lenses, and high-end displays
• Precision Gemstone Shaping: Creating intricate designs in precious and semi-precious stones
• LED Component Manufacturing: Cutting sapphire wafers for LED production

Our laser cutting machine is capable of processing various LCD components, including:

• ITO (Indium Tin Oxide) conductive films
• RGB color filters
• Polarizing films

Ensuring precise cutting without damaging delicate display materials.

Our laser cutting machine offers accurate cutting of K9 optical glass for high-quality lenses and prisms, as well as precision shaping of optical films for various industrial and scientific applications.

• Micro-cutting of small, intricate parts for the medical and aerospace industries
• Custom shape cutting for unique product designs and prototypes
• Multi-layer material processing for composite products

Our laser cutting system's versatility makes it an invaluable tool across multiple industries, from consumer electronics to advanced scientific research, ensuring high-quality results and efficient production processes.
